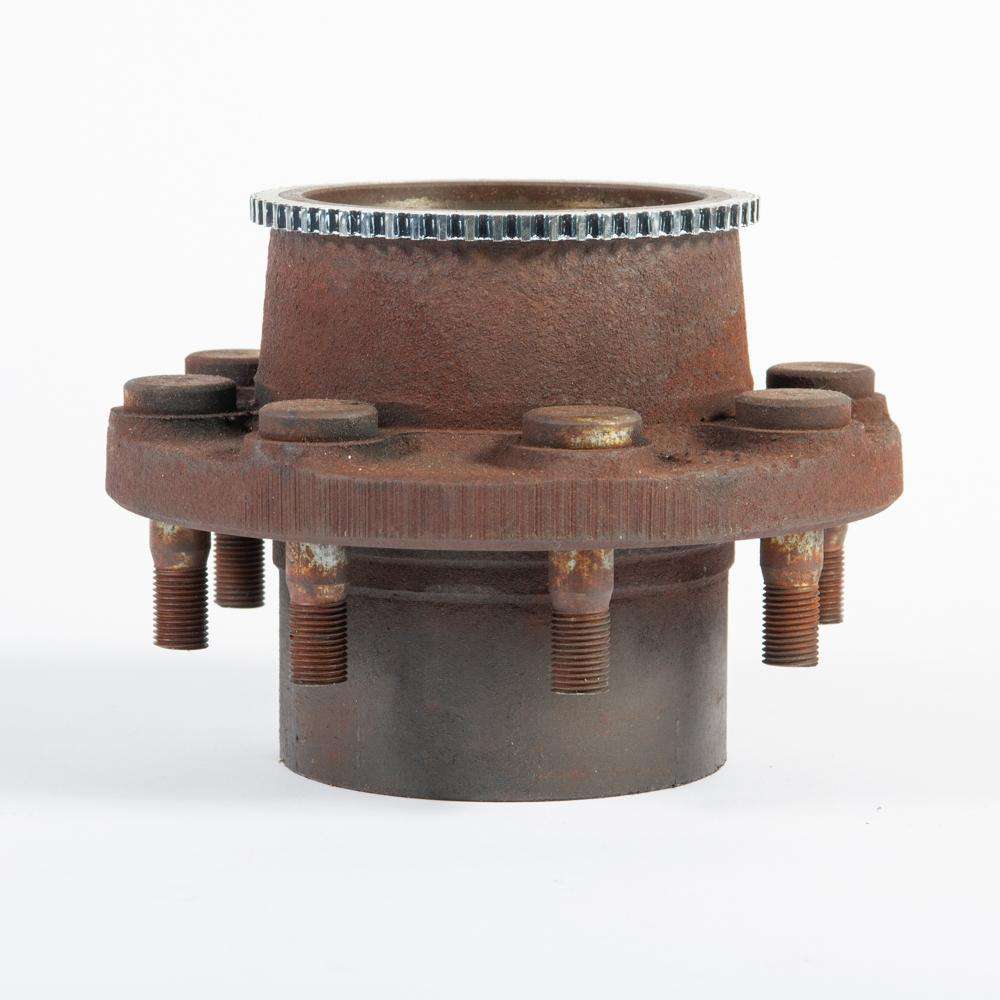

JK 1 TON Swap ABS Kit - Rear 14 Bolt 60 Tooth Tone Ring

To be used in the following configuration:

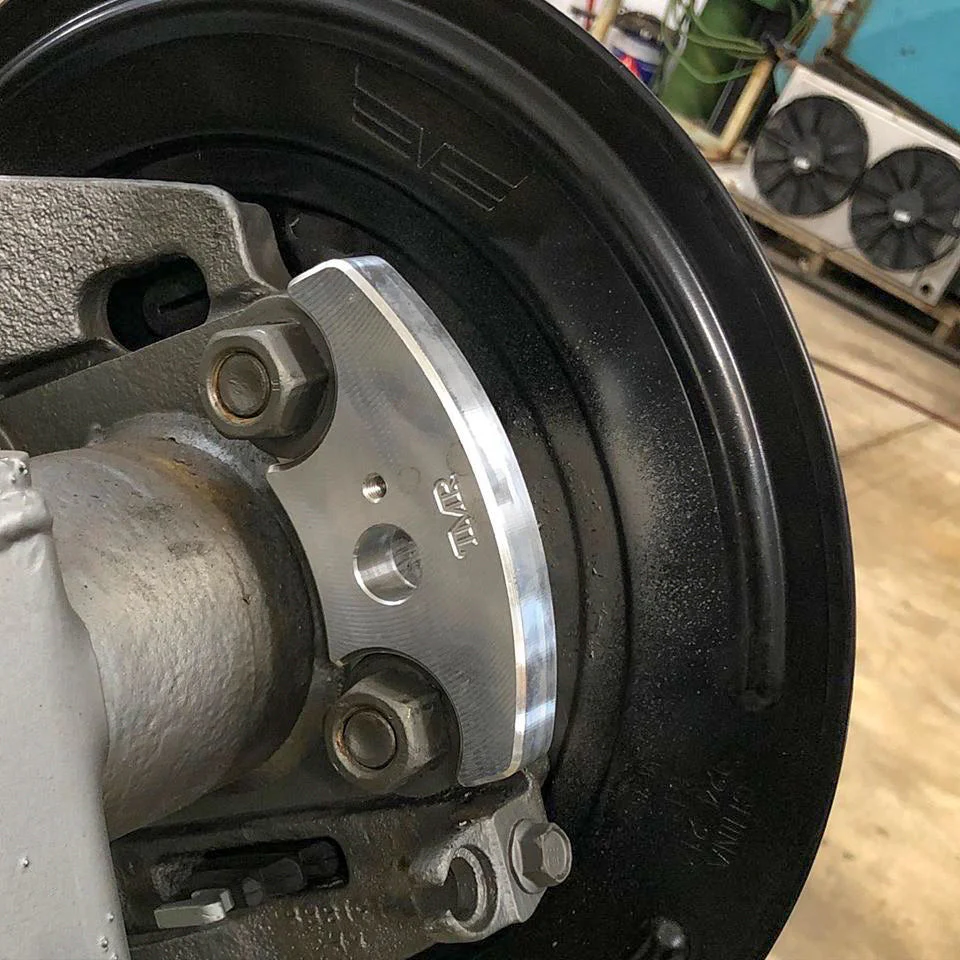

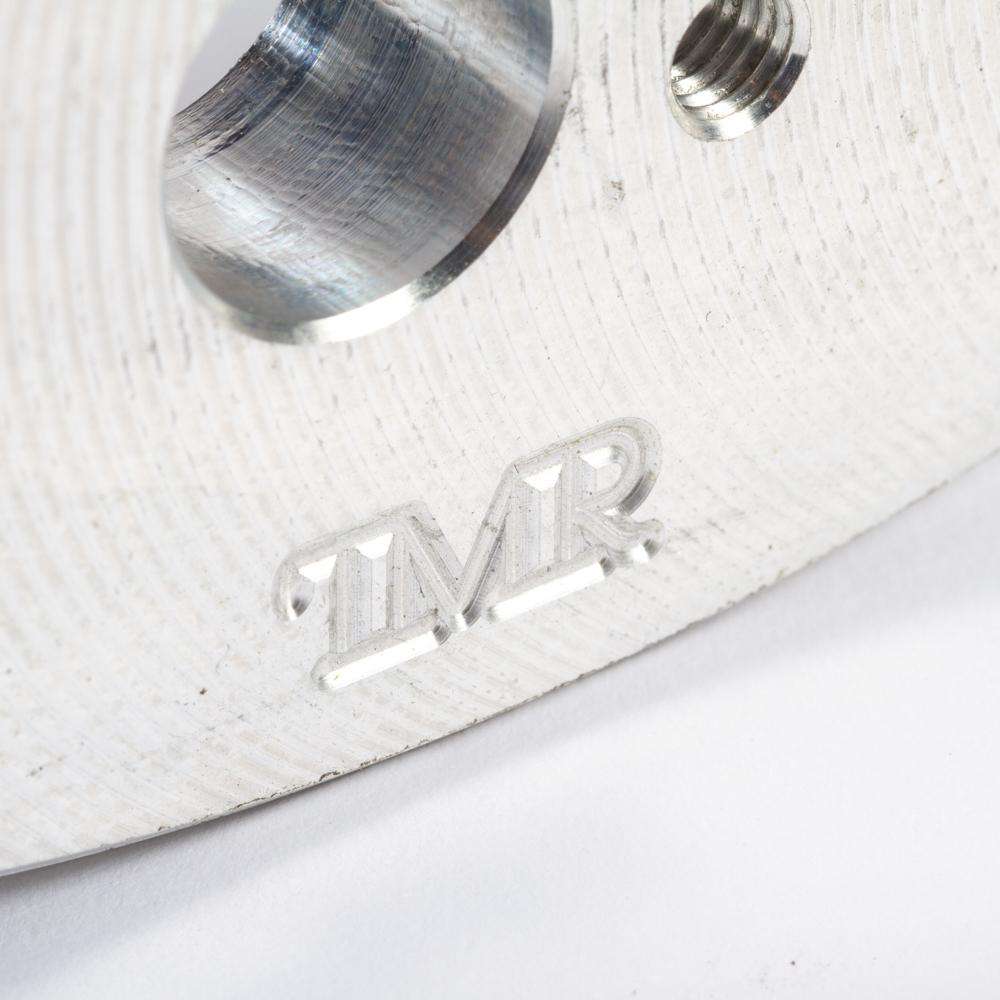

• Factory JK rear sensors mounted in our billet aluminum brackets (1 x driver side, 1 x passenger side)

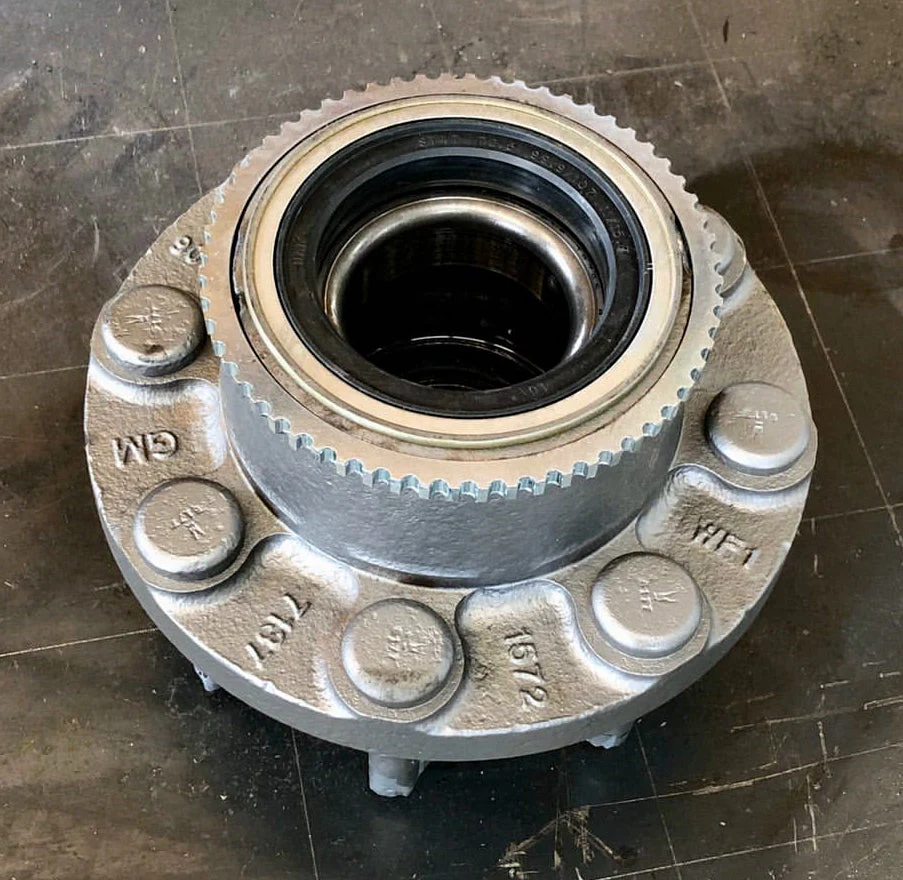

• Dodge ABS front sensors mounted in 05+ Ford D60 60 tooth unit bearing (1 x driver side, 1 x passenger side)
• The Dodge sensors will plug directly into the Ford unit bearing and hook up to your JK. Dodge ABS sensor part #'s Dorman 970-052, Airtec 5S8491, Chrysler 5179958AB
• Programmable tuner with ability to adjust axle ratio and tire size
• Fits 99-06 GM/Chevy 2500/3500 14 bolt Axles with factory disc brakes

For the programming use the following baselines as a starting point. Multiply your tire size and gear ratio by .867 to get your final number to enter in the programmer. Further adjustment may be required!

TIRE SIZE:

• 42" - Enter 36.41"
• 40" - Enter 34.68"
• 37" - Enter 32.08"
• 35" - Enter 30.35"


GEAR RATIO:

• 5.38 - Enter 4.66
• 5.13 - Enter 4.45
• 4.88 - Enter 4.23
• 4.56 - Enter 3.99
