1 Ton TRE Tapered Reamer, 1.5"/FT
TMR's tapered tie rod end reamer works on tons of automotive tie rod ends and drag link ends! 1.5" per foot taper (7.15 degrees) is an extremely common size and fits most domestic applications.
It's the perfect tool for enlarging existing tapers, enlarging a pitman arm taper, cleaning up damaged tapers, etc.
MADE IN THE USA!

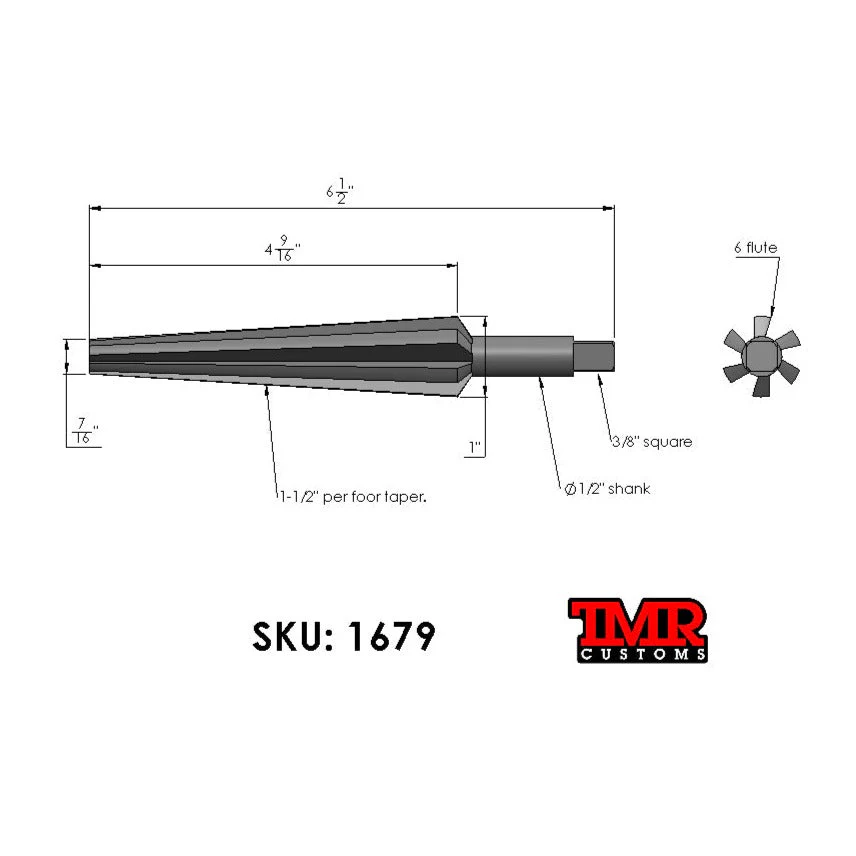

Please see the attached print and compare the dimensions to your existing hole/taper to confirm if this reamer will work for you!
- Works on the following applications - Chevy/GM Tie Rod End, Chevy/GM Drag Link End, Jeep TJ Tie Rod End, Jeep JK Tie Rod End, Jeep XJ Tie Rod End, Dana 30, Dana 44, Dana 60, etc.
- Made in USA from M2 high speed steel
- 1-1/2" per foot taper, AKA 7.15 degree (Chevy tie rod end taper)
- Flute length 4.5"
- Minor diameter 7/16", major diameter 1"
- 1/2" shank
- Common tie rod end part numbers with the matching taper are ES2234R, ES2234L, ES2233L, ES2027L, ES2026R and many more!
Original: $129.99
-70%$129.99
$39.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
TMR's tapered tie rod end reamer works on tons of automotive tie rod ends and drag link ends! 1.5" per foot taper (7.15 degrees) is an extremely common size and fits most domestic applications.
It's the perfect tool for enlarging existing tapers, enlarging a pitman arm taper, cleaning up damaged tapers, etc.
MADE IN THE USA!
Please see the attached print and compare the dimensions to your existing hole/taper to confirm if this reamer will work for you!
- Works on the following applications - Chevy/GM Tie Rod End, Chevy/GM Drag Link End, Jeep TJ Tie Rod End, Jeep JK Tie Rod End, Jeep XJ Tie Rod End, Dana 30, Dana 44, Dana 60, etc.
- Made in USA from M2 high speed steel
- 1-1/2" per foot taper, AKA 7.15 degree (Chevy tie rod end taper)
- Flute length 4.5"
- Minor diameter 7/16", major diameter 1"
- 1/2" shank
- Common tie rod end part numbers with the matching taper are ES2234R, ES2234L, ES2233L, ES2027L, ES2026R and many more!
